Author Topic: New Patch Panel  (Read 13944 times)
W2RWJ
Member

Posts: 197




Ignore
« on: July 06, 2013, 07:33:27 PM »

The team is upgrading the feed lines and patch bay at the N2MO station.  First off, I admit we stole the idea from K7ZSD.  Link: http://www.k7zsd.com/patch_panel_assy.htm

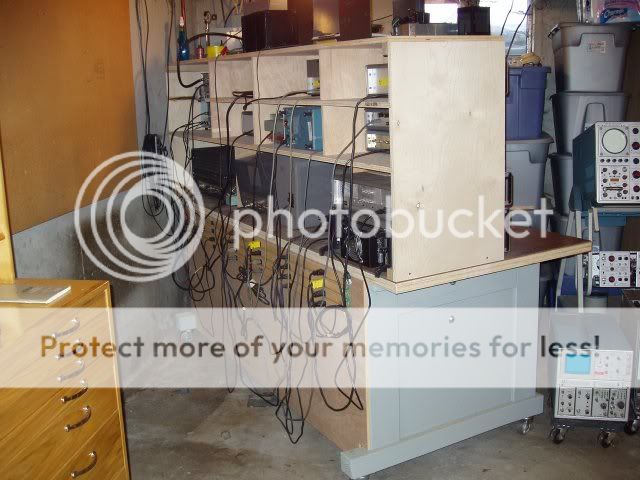

This is the cable from the operating positions to the patch bay:


Cable is 1/2 heliax, with N and 7/16 DIN connectors.   Lightning protection is Alpha-Delta with 7/16 DIN connectors, located in the attic at the entry panel.

The cable from the patch bay to the lightning protectors will be routed on top of the gray brackets using Andrew L4Click hangers on the studs sticking up from the wall brackets.

73 Martin


« Last Edit: July 06, 2013, 07:44:11 PM by W2RWJ » Logged
AC4RD
Member

Posts: 1235




Ignore
« Reply #1 on: July 07, 2013, 05:46:17 AM »

Martin, that is some BEAUTIFUL work there.  Neat, organized, well executed.  Makes me feel a little guilty about the rats' nest of wire and cable behind my rig.  Smiley
Logged
W2RWJ
Member

Posts: 197




Ignore
« Reply #2 on: July 07, 2013, 06:35:50 AM »

Ken,
Appreciate the complement.

N2MO is a working  exhibit at the InfoAge museum in Wall Township, NJ.  We are trying to present the hobby in the best possible light to the public, including quality of work.

There is more information about the N2MO station on the website at: http://www.n2mo.org on the "N2MO Station at InfoAge" tab


73 Martin
W2RWJ




« Last Edit: July 07, 2013, 06:44:18 AM by W2RWJ » Logged
W2RWJ
Member

Posts: 197




Ignore
« Reply #3 on: July 11, 2013, 05:33:04 PM »

Photo of Jeff,  N2LXM assembling the protector frame.   It is attached (via insulators) to a pair of 2x6 that span the rafters and joists:  http://www.sarex.us/temp_pix/Ground_strap 001.jpg

Protector frame partially installed:  http://www.sarex.us/temp_pix/Ground_strap 005.jpg  The bottom bracket and insulators were installed afterward

73 Martin Flynn
W2RWJ
« Last Edit: July 11, 2013, 05:37:58 PM by W2RWJ » Logged
KB1NXE
Member

Posts: 363




Ignore
« Reply #4 on: July 18, 2013, 02:50:52 PM »

Did a home version of that a few years back.  I used bulkhead UHF and N connectors.  You can see it here:

http://www.qsl.net/kb1nxe/Patch_Panel.html
Logged
W2RWJ
Member

Posts: 197




Ignore
« Reply #5 on: August 03, 2013, 05:48:07 PM »

Did a home version of that a few years back.  I used bulkhead UHF and N connectors.  You can see it here:

http://www.qsl.net/kb1nxe/Patch_Panel.html

Excellent work!  Have you had any problems with center pins loosening up with repeated connect/disconnect cycles?

73 Martin Flynn
W2RWJ
Logged
W2RWJ
Member

Posts: 197




Ignore
« Reply #6 on: August 03, 2013, 06:00:18 PM »

Adding a couple more pictures of the install for those interested:

Patch Bay showing rack-mounted triplexer and 5KW dummy load: http://www.sarex.us/temp_pix/thumb_9116_18_012.jpg

Trapeze for mounting protectors: http://www.sarex.us/temp_pix/thumb_9116_18_011.jpg

Unistrut hangers for the heliax in the attic.   The heliax is held in by Andrew hangers: http://www.sarex.us/temp_pix/thumb_9116_18_014.jpg

Side project:    Clock display in Radio Room One.  There are duplicates in Radio Room Two and the classroom.  All are tied to the building master clock via an IP connection: http://www.sarex.us/temp_pix/thumb_9116_18_013.jpg
« Last Edit: August 03, 2013, 06:26:14 PM by W2RWJ » Logged
KB1NXE
Member

Posts: 363




Ignore
« Reply #7 on: August 08, 2013, 11:59:50 AM »

Did a home version of that a few years back.  I used bulkhead UHF and N connectors.  You can see it here:

http://www.qsl.net/kb1nxe/Patch_Panel.html

Excellent work!  Have you had any problems with center pins loosening up with repeated connect/disconnect cycles?

73 Martin Flynn
W2RWJ

Doesn't have a lot of cycles.  So no loosening as of yet.  It's been installed for about 5 years and since I only need to pull one end to disconnect for lightning, I switch off.  The amount of time I switch between radios is small, but since I run hardline from the rotor loop or antenna to the back of the panel, I needed a way to transition the cables somehow.  This worked best.
Logged
K0JEG
Member

Posts: 672




Ignore
« Reply #8 on: August 17, 2013, 09:05:07 AM »

Side project:    Clock display in Radio Room One.  There are duplicates in Radio Room Two and the classroom.  All are tied to the building master clock via an IP connection: http://www.sarex.us/temp_pix/thumb_9116_18_013.jpg

I've been thinking about doing something like that here at the QTH. Do you have a link to the clock you use?
Logged
W2RWJ
Member

Posts: 197




Ignore
« Reply #9 on: August 17, 2013, 01:43:12 PM »

I've been thinking about doing something like that here at the QTH. Do you have a link to the clock you use?

American Time and Signal: http://www.atsclock.com/items/poe-digital-clocks.cfm?catID=102

Most of ours were acquired used due to the upfront cost of new
Logged
K0JEG
Member

Posts: 672




Ignore
« Reply #10 on: August 18, 2013, 07:04:35 PM »

I've been thinking about doing something like that here at the QTH. Do you have a link to the clock you use?

American Time and Signal: http://www.atsclock.com/items/poe-digital-clocks.cfm?catID=102

Most of ours were acquired used due to the upfront cost of new

Ouch!

Actually, not a bad price, but more than I should pay...
Logged
W2RWJ
Member

Posts: 197




Ignore
« Reply #11 on: October 09, 2013, 05:23:02 PM »

Progress:  Link to panoramic Image of Radio Room One at N2MO.  http://www.n2mo.org/images/radio_one.jpg The new patch bay is to the right.   Large Image Warning!

The heliax between the patch bay and the protector frame in the attic has not been installed.
« Last Edit: October 09, 2013, 05:25:51 PM by W2RWJ » Logged
W2RWJ
Member

Posts: 197




Ignore
« Reply #12 on: November 03, 2013, 05:54:37 PM »

More Progress:  Installing the FSJ2-50A  feedlines from the patch bay to the lighting protectors in the attic.   There are seven more of the FSJ2-50A heliax, and multiple rotator cables going in next weekend.



Shows the 14 cables to the operating positions, triplexer,  and 5KW dummy load.



73 Martin Flynn
W2RWJ
« Last Edit: November 03, 2013, 06:16:36 PM by W2RWJ » Logged
N2LXM
Member

Posts: 75




Ignore
« Reply #13 on: November 04, 2013, 10:57:15 AM »

Looks more like a work of art. But were getting there. Nice job everyone.
Logged
