Hi,  I'm trying to find the pinout of the control head cable for the Icom ID-4100.  Does anyone know of a link where that can be found?

Thanks,
Larry - N4LEW
Logged

W9IQ

  • Member
  • Posts: 8866
Re: ID-4100 Control Head cable pinout
« Reply #1 on: August 12, 2021, 11:44:16 AM »
Larry,

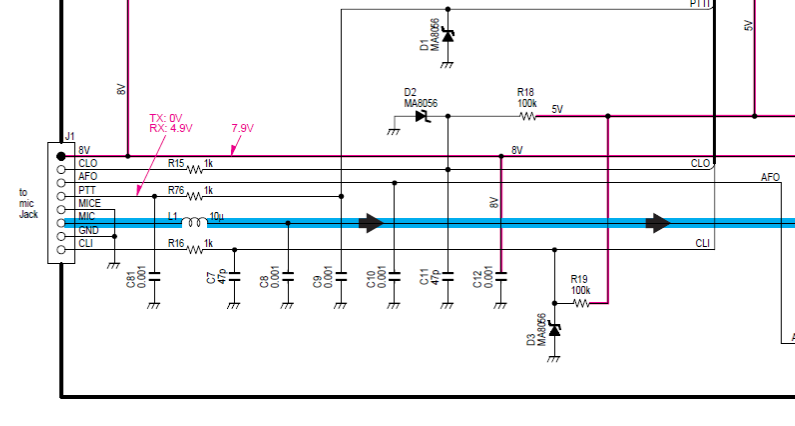

Have you downloaded the service manual? Here are two clips from it:




If instead you mean the ribbon cables on the back of the head, those pin-outs are also in the service manual on page 32.

- Glenn W9IQ
